Windows displaying texts as Symbols // NGDSServer.exe error

Post by arren »

Successfully installed Wine to run a motorcycle diagnostic application.

On launch,

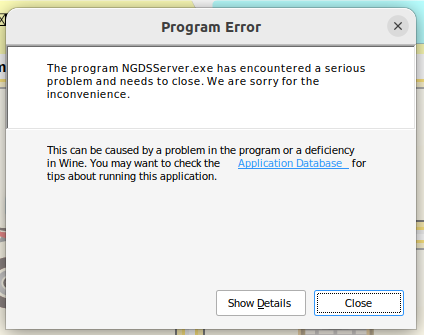

1. on some occasions prompt for NGDSServer.exe error is shown
Screenshot from 2024-11-27 10-02-06.png
2. application always displays texts as symbols.
Screenshot from 2024-11-28 20-05-53.png

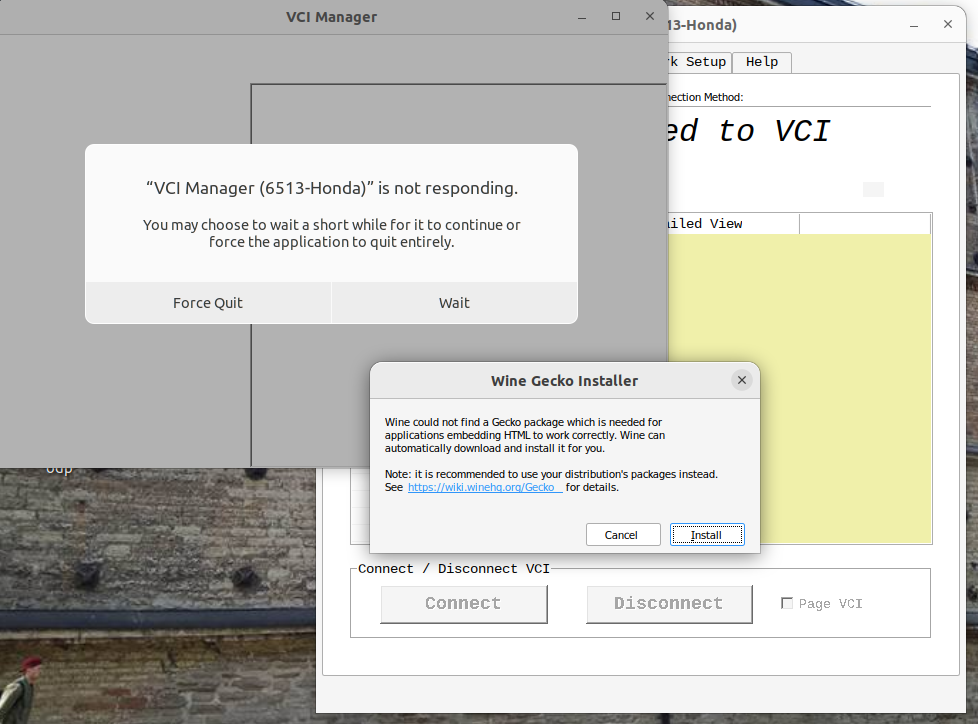

3. my last attempt to use program, this error was also present, but I believe has been resolved as I chose to have Wine locate the Gecko package - per prompt.
Screenshot from 2024-11-28 20-06-49.png
Seeking help as so far I've only found solutions for text not displaying correctly on Reddit, not through here and unsure if I should attempt. The backtrace.txt for NGDSServer.exe error is included below (couldn't upload .txt file).

=====
Unhandled exception: page fault on execute access to 0x00000000 in wow64 32-bit code (0x00000000).
Register dump:
CS:0023 SS:002b DS:002b ES:002b FS:0063 GS:006b
EIP:00000000 ESP:0254fd78 EBP:0254feb8 EFLAGS:00010212( R- -- I -A- - )
EAX:0254fdd0 EBX:00000000 ECX:03559f80 EDX:03559f80
ESI:017aa710 EDI:017aa710
Stack dump:
0x0254fd78: 007f6171 0254fdd0 4a361d2b 017aa710
0x0254fd88: 017aa768 017aa768 00000001 00000000
0x0254fd98: 00000000 00000000 fffffffe 0254fd58
0x0254fda8: 00000088 000001dc 017aa78c 017aa790
0x0254fdb8: 017aa794 017aa898 00573461 017aa734
0x0254fdc8: 0254fe01 0254fe64 00000000 0254fe78
Backtrace:
=>0 0x00000000 (0x0254feb8)
1 0x007f70fb in ngdsserver (+0x3f70fb) (0x0254fed4)
2 0x00ba6bd3 in ngdsserver (+0x7a6bd3) (0x0254ff0c)
3 0x00bb52c5 in ngdsserver (+0x7b52c5) (0x0254ff44)
4 0x00bb534f in ngdsserver (+0x7b534f) (0x0254ff50)
5 0x7bbb9900 in kernel32 (+0x29900) (0x0254ff68)
6 0x7bd64d73 in ntdll (+0x54d73) (0x0254ff80)
7 0x7bd661d2 in ntdll (+0x561d2) (0x0254ffec)
0x00000000: -- no code accessible --
Modules:
Module Address Debug info Name (51 modules)
PE 400000- 1989000 Export ngdsserver
PE-Wine 74970000-74987000 Deferred mswsock
PE-Wine 75a50000-75ab2000 Deferred msacm32
PE-Wine 75ad0000-75c3d000 Deferred winmm
PE-Wine 77f50000-77fb3000 Deferred imm32
PE-Wine 789c0000-78a00000 Deferred coml2
PE-Wine 78a10000-78b4d000 Deferred combase
PE-Wine 78b60000-78f9c000 Deferred ole32
PE-Wine 78fb0000-78ff0000 Deferred shcore
PE-Wine 79000000-790de000 Deferred shlwapi
PE-Wine 790f0000-79d72000 Deferred shell32
PE-Wine 79fb0000-7a1b6000 Deferred rpcrt4
PE-Wine 7a1d0000-7a207000 Deferred win32u
PE-Wine 7a220000-7a459000 Deferred gdi32
PE-Wine 7a470000-7a94f000 Deferred user32
PE-Wine 7a960000-7a9a7000 Deferred bcrypt
PE-Wine 7a9c0000-7acba000 Deferred crypt32
PE-Wine 7acd0000-7ad57000 Deferred ws2_32
PE-Wine 7adf0000-7b0f9000 Deferred ucrtbase
PE-Wine 7b110000-7b19b000 Deferred sechost
PE-Wine 7b1b0000-7b448000 Deferred msvcrt
PE-Wine 7b460000-7b54d000 Deferred advapi32
PE-Wine 7b630000-7bb71000 Deferred kernelbase
PE-Wine 7bb90000-7bcf6000 Dwarf-4 kernel32
PE-Wine 7bd10000-7bfeb000 Dwarf-4 ntdll
ELF 7df8b000-7df97000 Deferred libffi.so.8
ELF 7df97000-7e026000 Deferred libgmp.so.10
ELF 7e026000-7e070000 Deferred libhogweed.so.6
ELF 7e070000-7e0ba000 Deferred libnettle.so.8
ELF 7e0ba000-7e0d1000 Deferred libtasn1.so.6
ELF 7e0d1000-7e27c000 Deferred libunistring.so.2
ELF 7e27c000-7e29f000 Deferred libidn2.so.0
ELF 7e29f000-7e3fc000 Deferred libp11-kit.so.0
ELF 7e3fc000-7e62b000 Deferred libgnutls.so.30
ELF 7e638000-7e63f000 Deferred ws2_32.so
ELF 7e63f000-7e646000 Deferred crypt32.so
ELF 7e646000-7e653000 Deferred bcrypt.so
ELF 7e70b000-7e715000 Deferred libuuid.so.1
ELF 7e715000-7e745000 Deferred libexpat.so.1
ELF 7e745000-7e795000 Deferred libfontconfig.so.1
ELF 7e795000-7e7b8000 Deferred libbrotlicommon.so.1
ELF 7e7b8000-7e7d6000 Deferred libz.so.1
ELF 7e7d6000-7e816000 Deferred libpng16.so.16
ELF 7e816000-7e8e3000 Deferred libfreetype.so.6
ELF 7e8e3000-7e9eb000 Deferred libm.so.6
ELF 7ea06000-7eb87000 Deferred win32u.so
ELF f7c49000-f7cff000 Export ntdll.so
ELF f7cff000-f7f34000 Deferred libc.so.6
ELF f7f3d000-f7f4b000 Deferred libbrotlidec.so.1
ELF f7f51000-f7f89000 Deferred ld-linux.so.2
ELF f7f89000-f7f8e000 Deferred <wine-loader>
Threads:
process tid prio name (all IDs are in hex)
00000020 Motorcycle Communication System.exe
00000024 0
0000014c 0
00000154 0
0000015c 0
00000164 0
00000168 0
00000170 0 wine_rpcrt4_server
00000178 0
0000017c 0 wine_mmdevapi_notification
000001c8 0
00000038 services.exe
0000003c 0
00000040 0 wine_rpcrt4_server
0000004c 0 wine_rpcrt4_io
00000064 0 wine_rpcrt4_io
00000084 0 wine_rpcrt4_io
000000ac 0 wine_rpcrt4_io
000000e0 0 wine_rpcrt4_io
00000104 0
0000011c 0 wine_rpcrt4_io
00000044 svchost.exe
00000048 0
00000054 0
00000058 0 wine_sechost_service
0000005c winedevice.exe
00000060 0
00000068 0
0000006c 0 wine_sechost_service
00000070 0
00000074 0
00000078 0
000000fc 0
00000100 0
0000007c winedevice.exe
00000080 0
00000088 0
0000008c 0 wine_sechost_service
00000090 0
00000094 0
00000098 0
000000a4 0
000000a8 0
0000009c plugplay.exe
000000a0 0
000000b0 0
000000b4 0 wine_sechost_service
000000b8 0 wine_rpcrt4_server
000000bc explorer.exe
000000c0 0
000000d4 0
000000d8 0 wine_rpcrt4_server
000000c4 vci-ident.exe
000000c8 0
000000e8 0
000000f0 0
000000f8 0
00000110 0
00000114 0
00000118 0
00000138 0
0000013c 0
00000140 0
00000144 0
000001ac 0
000001b0 0
000001b8 0
00000108 rpcss.exe
0000010c 0
00000120 0
00000124 0 wine_sechost_service
00000128 0 wine_rpcrt4_server
0000012c 0 wine_rpcrt4_server
00000130 0 wine_rpcrt4_io
00000190 vci-manager.exe
00000194 0
000001a4 0
000001a8 0
000001bc 0
000001e0 0
000001c0 (D) C:\Program Files (x86)\Bosch\Motorcycle Communication System\Server\NGDSServer.exe
000001c4 0
000001dc 0 <==
000001ec 0
000001f8 0
000001fc 0
00000208 0
000001cc conhost.exe
000001d0 0
System information:
Wine build: wine-9.0
Platform: x86_64 (guest: i386)
Version: Windows 10
Host system: Linux
Host version: 5.15.0-122-generic
=====
