Crossover settings in Wine

Questions about Wine on macOS.
Post Reply
starparrot
Level 2
Level 2
Posts: 16
Joined: Sun Aug 18, 2019 10:55 pm

Crossover settings in Wine

Post by starparrot » Tue Aug 20, 2019 12:42 am

Crossover has settings for "High Resolution Mode" and "Performance Enhanced Graphics". Are these also part of Wine? I wanted to check as these may not have been rolled into Wine.

Thanks.

Gcenx
Level 5
Level 5
Posts: 275
Joined: Mon Dec 25, 2017 12:11 pm

Re: Crossover settings in Wine

Post by Gcenx » Wed Aug 21, 2019 12:53 pm

High Resolution Mode, is RetinaMode that’s enabled via a registry key.
Performance Enhanced Graphics, would be the CSMT setting within winecfg.

So yeah both options are built directly into wine already.

starparrot
Level 2
Level 2
Posts: 16
Joined: Sun Aug 18, 2019 10:55 pm

Re: Crossover settings in Wine

Post by starparrot » Thu Aug 22, 2019 8:14 pm

Gcenx wrote:High Resolution Mode, is RetinaMode that’s enabled via a registry key.
Performance Enhanced Graphics, would be the CSMT setting within winecfg.
Thanks Gcenx. You were going to provide the details of how to enable RetinaMode in my other forum post on here.

Where is the CSMT setting in winecfg? I looked for it but could not find it.

starparrot
Level 2
Level 2
Posts: 16
Joined: Sun Aug 18, 2019 10:55 pm

Re: Crossover settings in Wine

Post by starparrot » Mon Aug 26, 2019 6:56 pm

Sorry to bother you Gcenx (and others), but did you have any information on this? Thanks.

starparrot
Level 2
Level 2
Posts: 16
Joined: Sun Aug 18, 2019 10:55 pm

Re: Crossover settings in Wine

Post by starparrot » Mon Aug 26, 2019 7:32 pm

Sorry to bother you Gcenx (and others), but did you have any information on this? Thanks.
Sorry, I looked into it further and can see that this option in winecfg has been removed (possibly available in the Staging version). Thanks!

Gcenx
Level 5
Level 5
Posts: 275
Joined: Mon Dec 25, 2017 12:11 pm

Re: Crossover settings in Wine

Post by Gcenx » Tue Aug 27, 2019 5:46 pm

Yeah CSMT checkbox is only visible within Staging but it's still present within stock wine for a while now.


To enable Retina mode
- The macOS graphics driver supports a high-resolution ("Retina")
rendering mode. It can be enabled by setting "RetinaMode" to "Y"
under HKCU\Software\Wine\Mac Driver.

starparrot
Level 2
Level 2
Posts: 16
Joined: Sun Aug 18, 2019 10:55 pm

Re: Crossover settings in Wine

Post by starparrot » Wed Aug 28, 2019 1:42 am

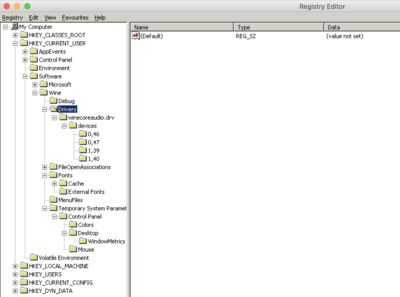

Thanks again Gcenx. In the Registry Editor there is no section for "HKCU\Software\Wine\Mac Driver". I've attached a screenshot of what I see under HKCU\Software\Wine\Drivers". Where else could this Retina mode setting be, or is it only available in Staging (I'm using Development 4.14)?
Attachments
Screen Shot 2019-08-28 at 16.39.57.png

Gcenx
Level 5
Level 5
Posts: 275
Joined: Mon Dec 25, 2017 12:11 pm

Re: Crossover settings in Wine

Post by Gcenx » Wed Aug 28, 2019 8:20 am

You need to add it yourself just like Windows.

Be warned when retinamode is active your programs Windows are gonna be hard to read due to wines almost none existent UI scaling

starparrot
Level 2
Level 2
Posts: 16
Joined: Sun Aug 18, 2019 10:55 pm

Re: Crossover settings in Wine

Post by starparrot » Tue Sep 03, 2019 2:01 am

Thanks Gcenx. I added it in.
